HANNA - AMMONIA, LOW RANGE, PORTABLE PHOTOMETER:
• CAL Check to verify meter performance
• Tutorial mode for step-by-step instructions
• Display results in multiple chemical forms
HI97700 is an advanced portable photometer for the low range measurement of ammonia in water.
This meter offers a superior optical system that utilizes a reference detector and narrow band interference
filters for extremely fast and repeatable measurements
Ammonia is a common byproduct from the breakdown of proteins and is excreted by animals as ammonia, urea or uric acid.
Ammonia is also a commonly found in fertilizer and used as a nitrogen source for plant growth. It is effective in cleaning chemical
and can be found in glass and floor cleaners. Ammonia exists in two forms. One is the ionized form ammonium (NH4+) and the other is
the gaseous form ammonia (NH3). The relationship in which form is present is based on the pH of the solution with ammonium becoming
more predominate at pH's less than 8. Since most naturally occurring water is pH 8 or less, ammonium is the most common form present.
For aquatic life, as the pH increases this can be lethal as the ammonium is converted to ammonia, which is more toxic since it can diffuse
back into the animal. In surface and groundwater, unless there is some contamination, the concentration is very low. In drinking water it is
common to add ammonia to water at concentrations less than 0.4 mg/L to extend the effectiveness of chlorine as a disinfecting agent.
Using the Nessler method the HI 97700 is designed to measure ammonia in the low range at levels from 0 to 3.00 mg/L ammonia - nitrogen.
The results can be displayed as ammonia or ammonium as well.
The HI97700 has an innovative optical system that offers superior performance in accuracy, repeatability, and the short amount of
time it takes to perform a measurement. This compact, waterproof meter is extremely user friendly with a tutorial mode that walks the
user graphically, step by step, in performing a measurement. The use of a backlit dot matrix LED allows the use of virtual keys which
makes the operation of the meter very intuitive including selecting different units of measure, reviewing GLP data, recalling the last 50
measurements, and customizing the meter to user preferences.
HI97700 is completely waterproof including the cuvette holder that is designed with ridges to protect the optical path from
getting scratched by the cuvette and a gasketed battery compartment that holds three common AA batteries. The compact design
fits comfortable in the hand for use in the field or on a table for benchtop use. The LCD is 71 mm (2.75") by 37 mm (1.6") and is
backlit for easy viewing under all conditions
Ammonia Range: 0.00 to 3.00 mg/L (as NH3-N)
Ammonia Resolution: 0.01 mg/L
Ammonia Accuracy: ±0.04 mg/L ±4% of reading
Ammonia Method: Adaptation of the ASTM Manual of Water and Environmental Technology, D1426 Nessler method
Photometer/Colorimeter Light Source: Light emitting diode
Photometer/Colorimeter Light Detector: silicon photocell with narrow band interference filter @ 420 nm
Bandpass Filter Bandwidth: 8 nm
Bandpass Filter Wavelength Accuracy: ±1.0 nm
Cuvette Type: round, 24.6 mm diameter (22 mm inside)
GLP: date, time of last calibration
Display: 128 x 64 pixel B/W LCD with backlight
Logging Type: automatic logging
Logging Memory: 50 measurement
Battery Type/Life: 1.5V AA battery (3 pcs.) / > 800 measurements (without backlight)
Automatic Shut-Off: After 15 minutes of inactivity (30 minutes before a READ measurement)
Environment: 0 to 50°C (32 to 122°F); relative humidity: 100% (IP 67, floating case)
Weight: 380 g (13.4 oz.) with batteries
Dimensions: 142.5 x 102.5 x 50.5 mm (5.6 x 4.0 x 2.0")
Ordering Information: HI97700 is supplied with cuvettes (2), caps (2), plastic inserts for cuvettes (2), 1.5V AA batteries (3), instruction manual,
and instrument quality certificate. Kit :HI97700C is supplied with CAL-Check standards, cuvettes (2), caps (2), plastic inserts for cuvette, (2), scissors,
cuvette cleaning cloth, 1.5V AA batteries (3), instruction manual, and instrument quality certificate.
| #HI97700: |
Hanna Ammonia Colorimeter |
$360.00 |
| #HI97700C: |
Hanna Ammonia Colorimeter - Kit |
$540.00 |
| #HI93700-01: |
Ammonia Reagent Set, Pkg/100 |
$66.00 |
| #HI731331: |
Replacement Glass Cuvettes, Pkg/4 |
$33.00 |
| #HI731331-1: |
Replacement Glass Cuvette, Each |
$8.95 |

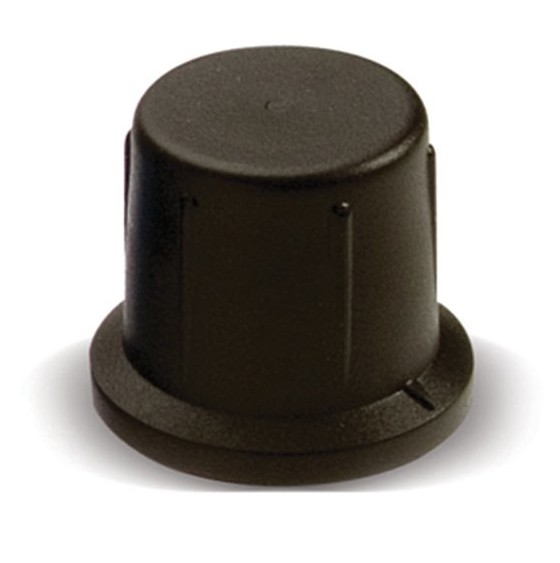

| #HI731335: |
Replacement Cuvette Cap, Pkg/4 |
$19.00 |
| #HI731335-1: |
Replacement Cuvette Caps, Each |
$5.25 |
| #HI731318: |
Replacement Microfiber Cloth |
$23.00 |
|
|

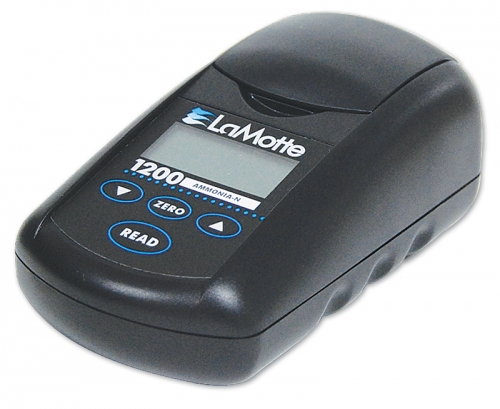

LAMOTTE MODEL 1200 AMMONIA COLORIMETER KIT:
The 1200 Series of single test, direct reading colorimeters incorporates design
advances that enhance reliability, improve accuracy, and simplify the calibration
process, all in a portable, hand-held package. Uses the Nessler method. Test Range
0-5 ppm x 0.05 ppm.
Features:
Water Resistant Design: Designed with excessive exposure to moisture in mind,
the 1200 colorimeters deliver trouble free performance in the field and lab.
Hinged Light Cover: Flip-top lid over sample chamber prevents any stray light,
especially in the field, and avoids misplacing separate light caps.
Field & Lab Use: An optional AC adapter (Order Code 1726) is available to
save battery life when in the laboratory.
Large Display: The large 3 digit display presents measurements in absorbance,
and indicates low battery warnings.
RS-232 Interface: An RS-232 port is provided to interface with a datalogger or
computer. Optional cable available, Order Code 1772.
Colorimeter Kit comes with test reagents, six sample vials with screw caps, instruction manual, and sturdy
carrying case.
Due to changes in Canadian Importation Regulations, Test Kits containing reagants with a mercury component (Ammonia Nessler) will no longer be
allowed into Canada.
Once the current stock of these kits and refills runs out, they will no longer be available. Salicylate based kits are not affected.
Model 1200 Colorimeter Manual
| #3680-01: |
LaMotte Ammonia Colorimeter Kit |
Discontinued |
| #1726-110: |
Optional AC Adapter |
$39.00 |
| #1772: |
Optional Interface Cable |
$79.00 |
| #V-4797-G: |
Replacement Ammonia #1 Reagent, 30 ml |
$10.25 |
| #V-4798-G: |
Replacement Ammonia #2 Reagent, 30 ml |
Discontinued |
| #0354: |
Replacement Pipet, Plastic, 1.0 ml |
$4.65 |
| #0290-6: |
Replacement Glass Vials, Pkg of 6 |
$38.00 |
| #0688: |
Replacement Water Sample Bottle |
$6.25 |
|
|

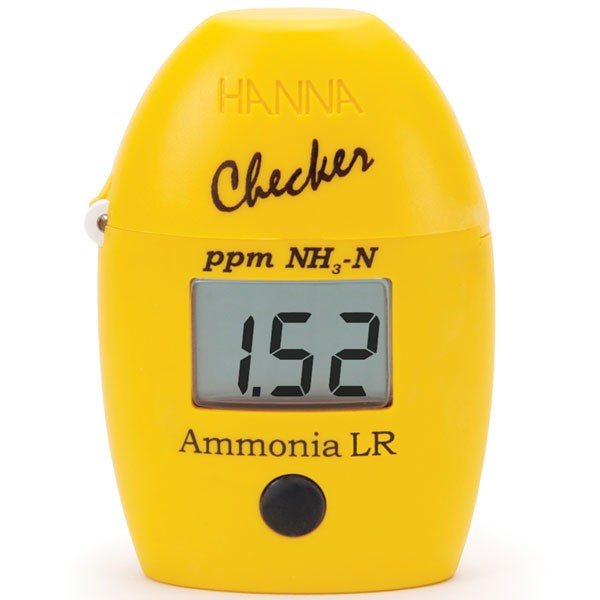

NEW! HANNA LOW RANGE AMMONIA COLORIMETER - CHECKER® HC:
Get accurate water testing results with our simple handheld colorimeter.
This ammonia colorimeter makes it easy to trust your measurements.
You no longer have to struggle to determine colors, this handheld colorimeter eliminates the trouble of
matching to a color chart by providing a direct digital ammonia result.
- This portable handheld colorimeter is easily carried in your pocket.
- One-button operation makes getting your ammonia results simple.
- Advance your technology and upgrade from your standard test kit.
Details:
The HI700 Checker® HC (Handheld Colorimeter) is a simple, accurate and cost effective way to measure ammonia. Present in water
as a component of the nitrogen cycle, ammonia is excreted from animals and other organisms such as heterotrophic bacteria, actinomycetes,
and fungi during the metabolism of proteins and amino acids. Generally present in small quantities in unpolluted waters, higher levels indicate organic pollution,
and is toxic to aquatic life. Designed as a more accurate alternative to chemical test kits, the HI700 provides quick, accurate results in a few easy steps.
- Easier to use and more accurate than chemical test kits
- Dedicated to a single parameter
- Small size, big convenience
- Ideal for: Water quality, Environmental, Plating, Education
Specifications:
Range: 0.00 to 3.00 ppm NH3-N
Resolution: 0.01 ppm
Accuracy @ 25°C/77°F ±0.05 ppm ±5% of reading
Method: adaptation of the ASTM Manual of Water and Environmental Technology D1426-92, Nessler Method. The reaction between ammonia and reagents causes a yellow
tint in the sample.
Environment: 0 to 50®C (32 to 122°F); RH max 95% non-condensing
Battery Type: (1) 1.5V AAA
Auto-off: after ten minutes of non-use
Dimensions: 81.5mm x 61mm x 37.5mm (3.2" x 2.4" x 1.5")
Weight: 64 g (2.25 oz.)
Ordering Information: HI700 Checker® is supplied with (2) sample cuvettes with caps, ammonia reagent starter kit for 25 tests (1 bottle of HI700A-0 reagent A and 1 bottle of HI700B-0 reagent B),
battery, instructions.
Warranty: 6 months
| #HI700: |
Hanna Low Range Ammonia Colorimeter - Checker® HC |
$65.00 |
| #HI700-25: |
Replacement Low Range Ammonia Reagent Set, 25 Tests |
$19.00 |
|
|
AMMONIA ALERT:
Ammonia Alert is an innovative color device for continuously detecting and monitoring
toxic free ammonia. A sensor changes reversibly from yellow to green to blue,
relative to the ammonia concentration. No test kits, chemicals, or procedures are needed.
The device detects less than 0.05 mg/L (ppm) free ammonia and alerts you before any sign
of stress. Marine or freshwater use. No care is required beyond removing algae with a clean,
soft material.
| #AM10: |
Ammonia Alert |
$19.95 |
|
|
LaMOTTE AMMONIA TEST KIT, 0-4 PPM:
Ammonia Octorule Test Kit. 50 Tests. Salicylate Method.
0-4 ppm. Increments at 0.0, 0.25, 0.50, 1.0, 2.0, 4.0 ppm NH3-N
| #5864-01: |
Ammonia Colorule, Salicylate Method |
$10290 |
| #R5864-01: |
Ammonia Refill Reagent Set |
$36.75 |
| #3968A-H: |
Ammonia #1 Tablets, Pkg/50 |
$20.58 |
| #3969A-H: |
Ammonia #2 Tablets, Pkg/50 |
$20.58 |
| #0106: |
Replacement Test Tube, 2.5-5.0-10.0 mL, Plastic, w/Cap |
$5.20 |
| #6665-02-CC: |
Ammonia-Nitrogen Color Chart, 0.1 - 4.0 ppm |
$25.75 |
|
|
LaMOTTE AMMONIA TEST KIT, 0-2 PPM:
Ammonia Octa-Slide Test Kit. 50 Tests. Salicylate Method.
0-2 ppm. Increments at 0.0, 0.05, 0.1, 0.25, 0.5, 1.0, 2.0 ppm NH3-N
| #3304-02: |
Ammonia Octa-Slide, Salicylate Method |
$135.50 |
| #R-3304-01: |
Ammonia Refill Reagent Set |
$63.50
|
| #3978LWT-H: |
Salicylate Ammonia #1, 60 ml |
$26.30 |
| #3978-L: |
Salicylate Ammonia #1, 500 ml |
$76.13 |
| #3979WT-G: |
Salicylate Ammonia #2, 30 ml |
$15.49 |
| #3979-L: |
Salicylate Ammonia #2, 500 ml |
$43.75 |
| #3982WT-G |
Salicylate Ammonia #3, 30 ml |
$15.49 |
| #3982-L: |
Salicylate Ammonia #3, 500 ml |
$43.75 |
| #0106: |
Replacement Test Tube, 2.5-5.0-10.0 mL, Plastic, w/Cap |
$5.20 |
|
|
LaMOTTE AMMONIA TEST KIT, 0-8 PPM:
Ammonia Octet Comparator Test Kit. 50 Tests. Nessler Method.
0-8 ppm in 1 ppm Increments.
Due to changes in Canadian Importation Regulations, Test Kits containing reagants with a mercury component (Ammonia Nessler) will no longer be
allowed into Canada.
Once the current stock of these kits and refills runs out, they will no longer be available. Salicylate based kits are not affected.
| #4795-01: |
Ammonia Octet Comparator Test Kit |
Discontinued
|
| #R-4795-01: |
Ammonia Refill Reagent Set |
Discontinued |
| #0230: |
Replacement Test Tube, 5 mL, Glass, w/Cap |
$4.75 |
|
|
|
LaMOTTE AMMONIA TEST KIT, 0-1 PPM:
Ammonia Octet Comparator w/ Axial Reader Test Kit. 50 Tests. Nessler Method.
0-1 ppm. Increments at 0.02, 0.04, 0.08, 0.14, 0.2, 0.4, 0.6 and 1 ppm.
Due to changes in Canadian Importation Regulations, Test Kits containing reagants with a mercury component (Ammonia Nessler) will no longer
be allowed into Canada.
Once the current stock of these kits and refills runs out, they will no longer be available. Salicylate based kits are not affected.
| #7418-02: |
Ammonia Octet Comparator Test Kit
|
Discontinued
|
| #R-7418-02: |
Ammonia Refill Reagent Set |
Discontinued |
| #0843: |
Replacement Test Tube, 10 mL, Glass, w/Cap |
$5.56 |
| #0354: |
Replacement Pipet, Plastic, 1.0 ml |
$4.88 |
|
|
|
LaMOTTE AMMONIA TEST KIT, 0-3 PPM:
Ammonia Octa-Slide Test Kit. 50 Tests. Nessler Method.
0-3 ppm. Increments at 0.2, 0.4, 0.6, 0.8, 1.0, 1.5, 2.0 and 3.0 ppm.
Due to changes in Canadian Importation Regulations, Test Kits containing reagants with a mercury component (Ammonia Nessler) will no
longer be allowed into Canada.
Once the current stock of these kits and refills runs out, they will no longer be available. Salicylate based kits are not affected.
| #3351-02: |
Ammonia Octet Comparator Test Kit
|
Discontinued |
| #R-3351-02: |
Ammonia Refill Reagent Set |
Discontinued |
| #0106: |
Replacement Test Tube, 2.5-5.0-10.0 mL, Plastic, w/Cap |
$5.20 |
|
|
HACH AMMONIA TEST STRIPS:
Suitable for both lab and field testing, Hach Test Strips are easy to use and easy to read. Ammonia (Nitrogen) is a product of microbiological
decay of plant and animal protein. Its presence in raw surface waters usually indicates domestic or agricultural pollution.
Above certain levels, it is toxic to fish. Contains 25 tests.
- Easy to use, disposable, and inexpensive
- A great way to obtain quick, quantitative answers in the field or in the lab.
Increment Steps: 0, 0.25, 0.5, 1.0, 3.0, 6.0 ppm as NH3-N, For freshwater.
| Code |
Test Factor |
Range |
Strips |
Price |
| 27553 |
Ammonia |
0-5 ppm |
25 |
$49.00 |
|
|
LIFEGARD AMMONIA TEST STRIPS:
Lifegard Ammonia Test Strips help in ensuring a sound water
environment for your indoor as well as outdoor fishes. The best aspect of these test strips is that they can be
used for quick detection of ammonium in the solution. Each vial features a leak proof, hinged pop-top
lid and a wrap around desiccant liner to protect the strips from moisture intrusion.
Increment Steps: 0, 0.5, 1.0, 3.0, 6.0 ppm as NH3-N
| #R443: |
Lifegard Ammonia Test Strips |
$22.95 |
|
