DISSOLVED OXYGEN TESTING

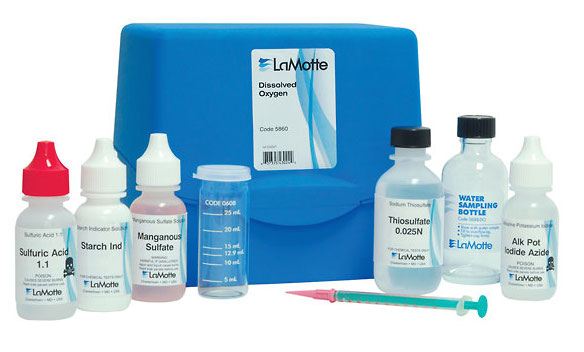

LAMOTTE DISSOLVED OXYGEN TEST KIT:

The dissolved oxygen test is one of the most important in aquaculture. Dissolved oxygen levels can affect fish respiration, as well as ammonia and nitrite toxicity. Salinity and temperature are both factors that affect dissolved oxygen levels. The LaMotte D.O. test kit can be used to test either fresh or salt water. This kit has an all liquid system and features a direct reading titrator. The direct reading titrator is a 1.0 ml microburet calibrated for direct readout in concentration; no counting of drops or calculations. 0-10 ppm O2 in 0.2 ppm increments. If the 10 ppm line is reached on the titrator without a color change, refill the titrator and continue. Be sure to add the initial 10 ppm to your final value. This will allow you to read samples with levels higher than 10 ppm. 50 tests per Kit.

HACH DISSOLVED OXYGEN TEST KIT:

The Hach D.O. test kit uses the modified Winkler method with drop count titration. 60 ml sample. Range tested is 0-20 ppm by 1 ppm. 100 tests per kit. Pre-measured reagent packages.

Kit accessories are clearance priced while current stock lasts

CHEMets DISSOLVED OXYGEN TEST KIT:

CHEMets test kits utilize self-filling ampules for colorimetric analysis of water quality. Vacuum pulls the sample up from a snap cup into the ampule when the tip is broken off. After tilting the ampule several times to mix the sample and reagent and waiting for the color to develop. Test kit contains 30 ampules, comparator, snap cup and instructions. Refill packs of 30 ampules are also available.

HOBO® DISSOLVED OXYGEN LOGGER - U26-001:

Measure oxygen concentrations in lakes, streams, rivers, estuaries, and coastal waters with the HOBO U26 Dissolved Oxygen Logger. This affordable and precise logger is recommended for aquatic biology and hydrology research projects. The HOBO U26 uses RDO® Basic (Rugged Dissolved Oxygen) optical DO sensor technology and is easy to maintain.

• Affordable, high performance dissolved oxygen (DO) monitoring with 0.2 mg/L accuracy
• Optical DO sensor technology for long-lasting calibration with less maintenance
• Dissolved Oxygen Assistant software corrects for measurement drift from fouling; provides salinity-adjusted DO concentrations and percent saturation
• Optical USB interface for high-speed, reliable data offload
• Easy-to-replace DO sensor cap lasts six months

NOTE: For DO measurements in saltwater, an adjustment for salinity is required. For waters with small changes in salinity (<2 ppt), a salinity meter reading typically provides enough accuracy.
Includes:
• U26-001 data logger
• DO sensor cap
• Protective Guard
• Calibration Boot with sponge
Environment:
The U26-001 Data Logger is for use in Underwater environments
Measurements:
The U26-001 Data Logger supports the following measurements:
Temperature, Dissolved Oxygen

Dissolved Oxygen:
Sensor Type: Optical
Measurement Range: 0 to 30 mg/L
Calibrated Range: 0 to 20 mg/L; 0 to 35°C (32 to 95°F)
Accuracy: 0.2 mg/L up to 8 mg/L; 0.5 mg/L from 8 to 20 mg/L
Resolution: 0.02 mg/L
Response Time: To 90% in less than 2 minutes
DO Sensor Cap Life: 6 months, cap expires 7 months after initialization
Temperature:
Temperature Measurement/Operating Range: -5 to 40°C (23 to 104°F); non-Freezing
Temperature Accuracy: 0.2°C (0.36°F)
Temperature Resolution: 0.02°C (0.04°F)
Response Time: To 90% in less than 30 minutes
Logger:
Memory: 21,700 sets of DO and temperature measurements (64 KB total memory)
Logging Rate: 1 minute to 18 hours
Time Accuracy: ±1 minute per month at 0 to 50°C (32 to 122°F)
Battery: 3.6 V lithium battery; factory replaceable
Battery Life: 3 years (at 5 minute logging)
Download Type: Optical
Depth Rating: 100 m (328 ft)
Wetted Materials: Black Delrin®, PVC, EPDM o-rings, silicone bronze screws; rated for saltwater use
Size: 39.6 mm diameter x 266.7 mm length (1.56 x 10.5 inches)
Weight: 464 g (16.37 oz)

http://dynamicaqua.com/loggers.html#base Requires:
Hoboware Pro Software #BHW-PRO-CD
and
Hobo Waterproof Shuttle #U-DTW-1 or Base Station #BASE-U-4

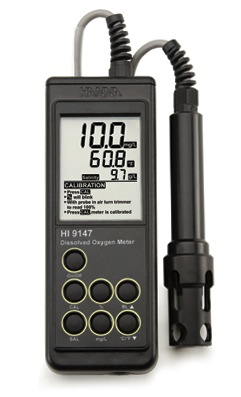

HANNA WATER-RESISTANT DISSOLVED OXYGEN METER - HI9147:

HI 9147 is designed for aquaculture applications. This unit is unique among our family of DO meters as it is supplied with a galvanic probe.

Unlike polarographic probes, galvanic DO probes require no conditioning time. When you need to measure multiple samples in a given period of time, pick it up and measure on demand.

HI 9147 is a must have for DO sensitive organisms or high bio-load environments.

Manufacturer Flyer (pdf)

OXYGUARD HANDY POLARIS DISSOLVED OXYGEN METER:

The OxyGuard Handy Polaris is a portable Dissolved Oxygen (DO) meter. It measures %saturation, mg/L (ppm), temperature and has salinity compensation. Measurements are compensated for temperature and barometric pressure. The probe is fully field serviceable. The Polaris has a larger display with backlight and offers automatic calibration, and a choice of language and units of measurement.

FEATURES AND BENEFITS:

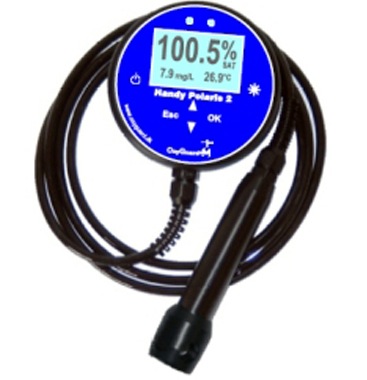

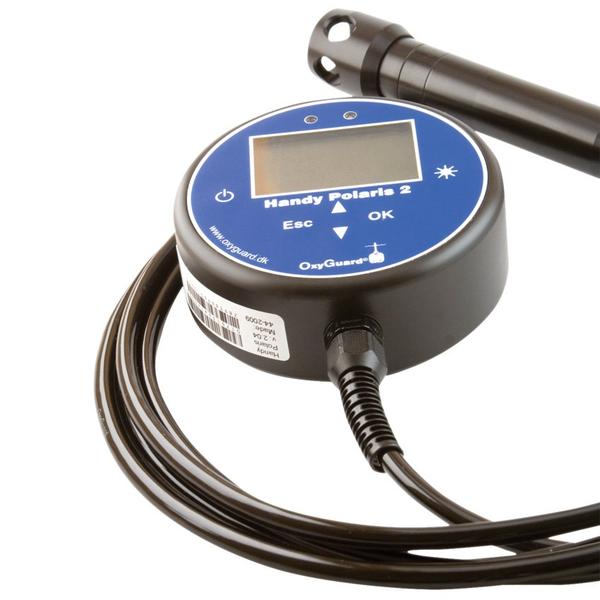

OXYGUARD HANDY POLARIS 2 DISSOLVED OXYGEN METER WITH DATA LOGGING:

The Handy Polaris 2 hand-held meter makes it easy to measure dissolved oxygen and temperature. The flat foil pushbuttons are easy to operate and the instrument is always ready to use - just press the "on" button and measure. Dissolved oxygen values are shown both in mg/l (ppm) and % saturation - the user chooses which parameter is shown in large figures. Polaris 2 has a memory that can contain 3000 complete sets of data - each with values of mg/l (ppm), % saturation, temperature, time and date. Values can be stored either automatically at preset time intervals, or manually. You can group values according to the place of measurement. Stored values can be transferred to a PC using the Polaris Link, which connects to the PC via a USB cable. The datalogging and transfer capabilities, and other functions such as automatic calibration  and self-check of the probe and meter, combine with the well-known accuracy, reliability and low maintenance needs of the OxyGuard Handy series to make an instrument that will serve you well for many years to come.

FEATURES AND BENEFITS:

YSI 550A DISSOLVED OXYGEN METER: Oxygen & Temperature:

This new meter from YSI is extremely field rugged and is completely waterproof (IP-67 rated). It is impact resistant, and measures dissolved oxygen in both mg/L and percent saturation. It features a new field-replaceable polargraphic probe that is weighted for quick sinking with easy to replace cap membranes. It features push-button calibration and has temperature, salinity, and altitude compensation. The large backlit display shows simultaneous readings of oxygen and temperature (°C or °F), and a low battery indicator. Uses four C cell batteries (included). Three year warranty on meter, one year on probe.

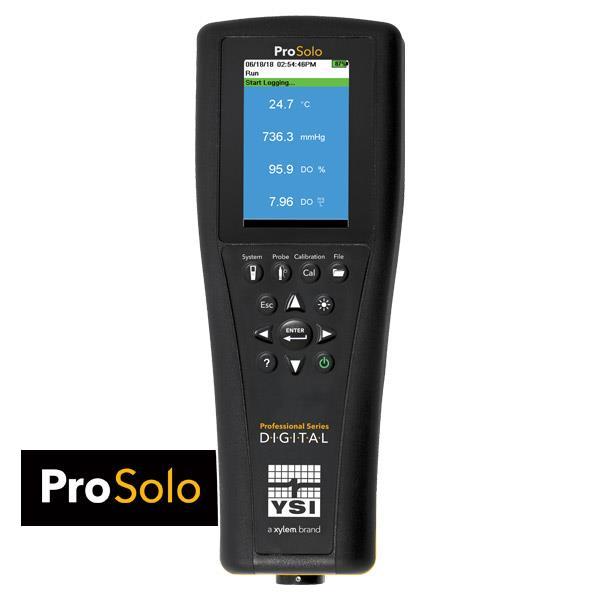

YSI® PROSOLO® OPTICAL (ODO) D.O. METER:

Order the meter body and cable/probe assemblies separately.

Product Code #626650
A evolution of the Professional Series water quality meters, the ProSolo DIGITAL handheld replaces the ProODO as YSI's most advanced optical dissolved oxygen field meter. Paired with the latest optical DO and temperature (ODO/T) probe, the ProSolo benefits from years of expertise in cutting-edge dissolved oxygen technology. Featuring expanded measurement capabilities with ODO/T and ODO/CT probe options, the ProSolo is ideal for a variety of applications including aquaculture, coastal, estuary, and wetland sampling.
- ProDIGITAL Platform for Enhanced Versatility
- Connect any ProDIGITAL integrated probe/cable assembly with the ProSolo to form a complete sampling system. Probe assemblies are user-replaceable with cable lengths ranging from 1- to 30-meters.
- ODO Sensor Technology

Dissolved oxygen measurement technology has advanced from electrochemical sensors, such as polarographic and galvanic, to luminescent-based, optical sensors. YSI optical DO sensors are non-consumptive, meaning oxygen is not consumed during the measurement. As a result, there is no flow dependence or stirring required with ODO, allowing for the most accurate readings in the field. Advantages over electrochemical sensors include:
- Higher accuracy with no stir dependence
- Less drift over time; holds calibration longer Ÿ Less maintenance; no membranes or electrolyte

- Provides Years of Sampling for All Field Conditions
- ProSolo handheld meets the demands of field work with a rugged, waterproof case (IP-67 rated) and a military-spec (MS) cable connector.
Rigorously drop tested from all angles, the handheld features a 3-year warranty, and a 2-year warranty is included with the probe assembly and ODO Cap.

 Convenient Sampling Experience
- Ergonomic handheld for a comfortable grip w Easy-to-read color display and backlit keypad
- Large onboard memory with storage capacity for over 100,000 data sets w Site ID and Data ID tag capabilities for data organization
- Single cable design for probe assembly lengths ranging from 1- to 100-meters w Data export directly to USB flash drive (included)
- Long-life rechargeable lithium-ion battery that is user-replaceable w Simple and quick calibration procedures

Calibration 400 detailed calibration records can be stored and are available to view, download, and print
Display Color, LCD graphic display; 3.9 cm width x 6.5 cm height
Languages English, Spanish, German, French, Italian, Norwegian, Portuguese, Japanese, Chinese (Simplified & Traditional), Korean, Thai
Logging Capabilities Single point or continuous with autostable feature
Memory > 100,000 data sets
Operating Temperature 0 to 50 °C (32 to 122 °F)
Power Rechargeable lithium-ion battery pack provides ~48 hours with the handheld only; battery recharge time is ~9 hours with the AC power adapter; the instrument can also be powered via AC or external power pack through the USB port
Size 8.3 cm width x 21.6 cm length x 5.6 cm depth (3.27 in x 8.5 in x 2.21 in)
Storage Temperature 0 to 45 °C (32 to 113 °F) with battery installed; 0 to 60 °C (32 to 140 °F) without battery installed
USB Built-in micro USB On-The-Go port for PC connection, recharging/powering the handheld and connecting directly to a USB stick
Warranty 3-year handheld warranty
Weight 567 grams (1.25 lbs) with battery

ODO / TEMP / CONDUCTIVITY:

Dissolved Oxygen
(Optical luminescence) Units: % saturation, % saturation local, mg/L, ppm
Range: 0 to 500%, 0 to 50 mg/L
Accuracy: 0 to 200%: ±1% of reading or 1% saturation, whichever is greater

Temperature
(Thermistor) Units: °C, °F, K
Range: -5 to 70°C (temperature compensation range for DO mg/L measurement: -5 to 50°C ); Accuracy: ±0.2°C;
Resolution: 0.1°C or 0.1°F (auto-adjusts based on range)

Conductivity
(Four nickel electrode cell)
Units: uS/cm, mS/cm
Resolution: 0.01 mg/L and 0.1%, or 0.1 mg/L and 1% (auto-adjusts based on range)

Salinity
Units: uS/cm, mS/cm
Range: -5 to 70°C (temperature compensation range for DO mg/L measurement: -5 to 50°C ); Accuracy: ±0.2°C
Resolution: 0.1°C or 0.1°F (auto-adjusts based on range)


ODO / TEMP:

Dissolved Oxygen
(Optical luminescence) Units: % saturation, % saturation local, mg/L, ppm
Range: 0 to 500%, 0 to 50 mg/L
Accuracy: 0 to 200%: ±1% of reading or 1% saturation, whichever is greater
200 to 500%: ±8% of reading; 0 to 20 mg/L: ±0.1 mg/L or 1% of reading, whichever is greater; 20 to 50 mg/L: ±8% of reading
Resolution: 0.01 mg/L and 0.1%, or 0.1 mg/L and 1% (auto-adjusts based on range)

Temperature
(Thermistor) Units: °C, °F, K
Range: -5 to 70°C (temperature compensation range for DO mg/L measurement: -5 to 50°C ); Accuracy: ±0.2°C;
Resolution: 0.1°C or 0.1°F (auto-adjusts based on range)

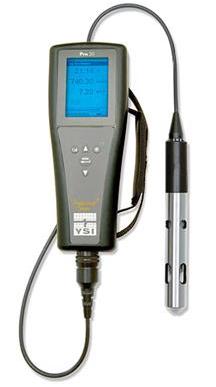

YSI® PROFESSIONAL SERIES PRO20 DISSOLVED OXYGEN INSTRUMENT:

The YSI Pro20 dissolved oxygen meter is a rugged, user-friendly instrument for dissolved oxygen measurement.
User-replaceable sensors and cables and convenient One Touch Cal feature makes it extremely user friendly. Mil-spec (military spec) connectors, IP-67 waterproof and rubber over molded case, and 1-meter drop tests ensure the instrument remains in your hands to provide years of sampling even in the harshest field conditions. The feature set of the Pro20 results in a low total cost of ownership over the life of the product. Fast response times with the Polarographic or Galvanic dissolved oxygen sensors allow you to complete your sampling routine quickly. The long life of the Polarographic sensor saves time and money and reduces your overall cost. The Galvanic sensor enables you to start sampling immediately without a warm-up period. Either sensor you choose for the field will give you accurate, quality data.
Additional features include:
 • Internal barometer for highest accuracy
 • Choose field DO sensors (Polarographic or Galvanic) or lab BOD probe for BOD in wastewater
 • One Touch Cal calibrates within 3 seconds with the push of a button
 • Stores 50 data sets
 • Graphic, backlit display and glow in the dark keypad
 • Available with 1, 4, 10, 20, 30 or 100-meter cables
 • View display with polarized sunglasses on
 • Fastest response time on the market with 95% response in 8 seconds with standard membrane
 • Multiple languages include English, Spanish, French and German
 • User replaceable sensors and cables
 • 3-year instrument; 2-year cable warranty
Lab or field - the Pro20 is ready for whatever you need when it comes to oxygen meters.
When ordering the YSI Pro20 you must order the instrument, cable, and dissolved oxygen probe separately, allowing you to choose the system that best fits your application.

 • Connector: MS (military spec) waterproof with bayonet lock
 • Graphic Display: Graphic display with detailed Help, backlit display and keypad
 • Languages: French, Spanish, German, English
 • Logging Capabilities: Single
 • Measurement Range: 0 to 500%; 0 to 50 mg/L
 • Memory: 50 data sets
 • Multiparameter: Yes
 • Parameters Measured: Temperature, Dissolved Oxygen, Built-in barameter
 • Power: 2 alkaline C-cells provide 450 continuous hours at ambient temperature without backlight
 • Sampling: Yes
 • Unit of Measure: air saturation, mg/L, Barameter-mmHg, °F, Dissolved Oxygen-%, Temperature- °C
 • User Calibratable: Yes
 • User Replaceable: Yes
 • Warranty: 3-year instrument; 2-year field cables
 • Waterproof: floats, IP-67 (even with the battery cover off)

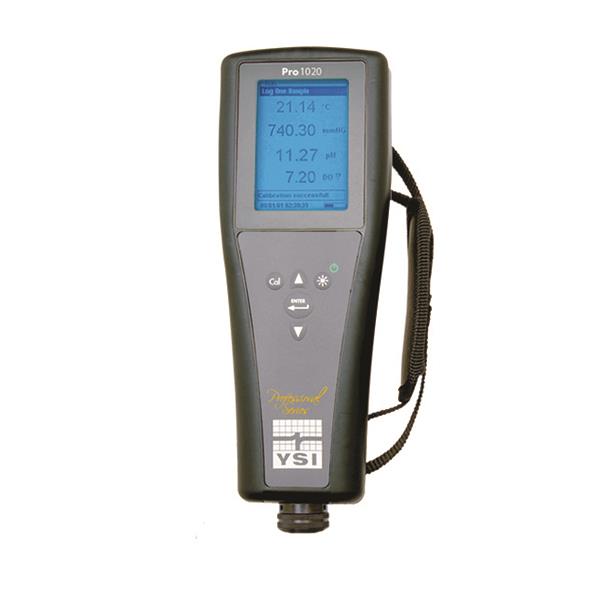

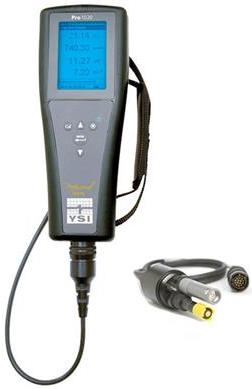

YSI® PROFESSIONAL SERIES PRO1020 DISSOLVED OXYGEN and pH or ORP INSTRUMENT:

The Pro1020 provides everything you need in a handheld meter that measures dissolved oxygen and temperature along with either pH or ORP (redox). Rugged, simple and reliable. Measure pH or ORP, dissolved oxygen, and temperature.

Rugged and reliable, the YSI Pro1020 provides everything you need in a handheld instrument for the measurement of either pH or ORP along with temperature, and dissolved oxygen. User-replaceable sensors and cables along with convenient calibration routine feature makes it extremely user friendly. Mil-spec (military spec) connectors, IP67 waterproof and rubber over molded case, and 1-meter drop tests ensure the instrument remains in your hands to provide years of sampling even in the harshest field conditions. The feature set of the Pro1020 results in a low total cost of ownership over the life of the product and proves that it is smarter, tougher, and more versatile.

Additional features include:
 • User-replaceable cables and sensors provide versatility, reduce down time and reduce overall cost of ownership.
 • Available with 4, 10, or 20m cable lengths standard (cable management kit included on all cables 4-m and longer).
 • Smart calibration; the instrument remembers the previous calibration values and simply walks you through the routine.
 • Stores 50 data sets; no need to write down data.
 • Large graphic, backlit display and glow in the dark keypad. Usable in any lighting condition. The display is also visible when wearing polarized sunglasses.
 • Tough. IP67, impact-resistant, waterproof case. Waterproof without the battery cover as well.
 • Rubber over molded case provides extra durability. Military spec connectors are unsurpassed for ruggedness.
 • Multiple languages include English, Spanish, French, and Portuguese.
 • Choose either polarographic or galvanic DO sensors.
 • Quick response times; 95% DO response time in approximately 8 seconds with standard membrane (fastest response time in the market).
 • 3-year instrument; 2-year cable; 1-year sensor warranty (Galvanic DO is 6-months)

When ordering the Pro1020 you must order the instrument, cable, and dissolved oxygen (Polarographic of Galvanic), pH or ORP sensor separately, allowing you to choose the system that best fits your application. Temperature is part of the cable you order and included in the cable purchase.

 • Connector: MS (military spec) waterproof with bayonet lock
 • Graphic Display: backlit display AND keypad, Graphic display with detailed Help
 • Languages: English, French, German, Spanish
 • Logging Capabilities: Single
 • Measurement Range: pH-0 to 14 units ORP--1500 to 1500 mV Dissolved Oxygen-0 to 500% air saturation, 0 to 50 mg/L Temperature--5 to 55°C
 • Memory: 50 data sets
 • Multiparameter: Yes
 • Parameters Measured: Dissolved Oxygen, pH, ORP, temperature
 • Power: 2 alkaline C-cells provide 425 continuous hours at ambient temperature without backlight
 • Sampling: Yes
 • Unit of Measure: Temperature-°C, ORP-mV, Dissolved Oxygen % air saturation, pH-units, mg/L
 •  User Calibratable: Yes
 •  User Replaceable: Yes
 • Warranty: 3-year instrument; 2-year field cables
 • Waterproof: floats, IP-67 (even with the battery cover off)

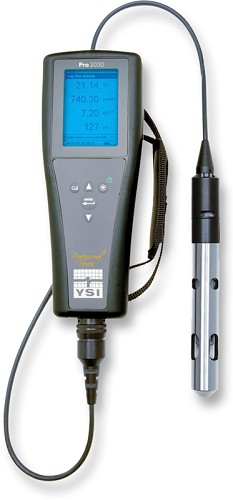

YSI® PROFESSIONAL SERIES PRO2030 DUAL DISSOLVED OXYGEN/CONDUCTIVITY INSTRUMENT:

Rugged and reliable, the YSI Pro2030 provides everything you need in a handheld dissolved oxygen instrument with conductivity. Automatically compensates DO readings for changes in salinity. User-replaceable DO sensors and cables, 50 data set memory, and simple DO calibration makes the Pro2030 user friendly. Rugged design and 1-meter drop tests ensure the instrument remains in your hands to provide years of sampling even in the harshest field conditions. Fast response times allow you to complete your sampling routine quickly, saving time and money.
• 3-year instrument; 2-year cable warranty
• User-replaceable cables and sensors. Choose either polarographic or galvanic DO. Conductivity sensor built into cable.
• Quick DO cal allows easy DO calibrations within seconds with the press of a button. Automatic internal barometric pressure compensation.
• Stores 50 data sets; no need to write down data
• Graphic, backlit display and glow in the dark keypad
• Tough. IP-67, impact-resistant, waterproof case even without the battery cover. Rubber over molded case provides extra durability. Military spec connectors.
• Quick response times; 95% DO response time in approximately 8 seconds with standard membrane (fastest response time in the market)
• Super-stable 4-electrode conductivity sensor is built for true field performance and designed for rugged conditions
• Ideal replacement for the YSI Model 85!

 • ;Size: 8.3 cm width x 21.6 cm length x 5.7 cm depth (3.25 in. x 8.5 in. x 2.25 in.)
 • Weight: with batteries 475 grams (1.05 lbs.)
 • Power: 2 alkaline C-cells providing 400 hours of battery life; low battery indicator on Pro2030
 • Cables: 1- 4- 10- 20- and 30-m lengths (3.28, 13.1, 32.8, 65.6 ft.)
 • Warranty: 3-year instrument; 2-year cable; 1-year Polarographic sensors; 6-months Galvanic sensors
 • Salinity: Input Range 0-70 ppt; automatic based on conductivity
 • Specific Conductance Temp Comp: 0 to 4%
 • Data Memory: 50 data sets

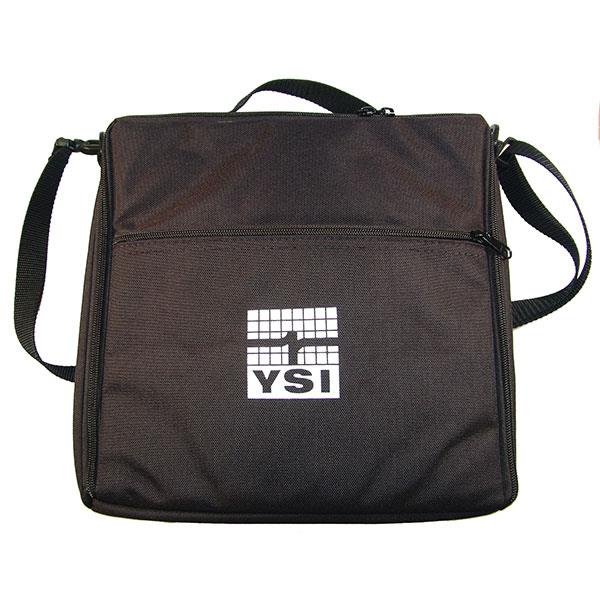

YSI SOFT-SIDED CARRYING CASE:

A compact, convenient, soft-sided carrying case ideal for all Pro Series products with cables up to 10-m (4-m for the Quatro cable).

Case dimensions measure 12x12x3 (inches). The case includes a hand strap and an over-the-shoulder carrying strap. Internal pockets include one for the Pro Series instrument and four separate zippered, mesh pockets. There are also three attached elastic straps that will easily hold 100 mL sample/calibration/buffer bottles or Confidence Solution. Includes 3 each 100 mL buffer bottles. Will accommodate up to 10-meter DO/temp (Pro20, Pro Plus with DO, or ProODO cables) or up to 4-meters for multiparameter probes/cables.
