FORESTRY EQUIPMENT

HIP CHAIN:

Excellent for preliminary surveying, stakeout, distance verification, sampling grid layout, reconnaissance, timber cruising and mapping. Just tie the line to a tree or other object and set the meter to zero. As you walk, the meter measures and indicates the length of the line pulled out giving you the distance you have traveled. Your hands are free for other tasks. After use, simply break the line, reset the counter, and you are ready to measure again. Housing is highly visible, impact-resistant red box. Weight 450 g. Measures in meters and 1/10ths.

Discontinued - See Part #ASHC2M for replacement.

HIP CHAIN THREAD:

White thread. Strong yet biodegradable (disintegrates with sunlight). Length of 2.5 km per roll. Won't fluff when you pull it through the reel.

Use with the older M25 model hip chains above - not compatible with the ASHC2M below.

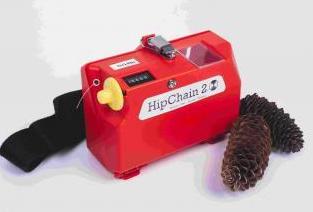

NEW! HIP CHAIN 2.0:

The new HipChain 2.0 is designed to be simple to use and light to carry. The new, slim 5000 metre thread cone allows a slim profile close to your body for working amongst dense forest. With a capacity of 5000 metres of thread on a cone, this special cones base interlocks with the outer shell eliminating heavy mounting hardware. The counter's reset knob is conveniently mounted at the rear with a wide flange allowing reset from from the top or side. Easy to re-thread, with a sturdy plastic body and metal components only where you need them for a long service life. Metric.

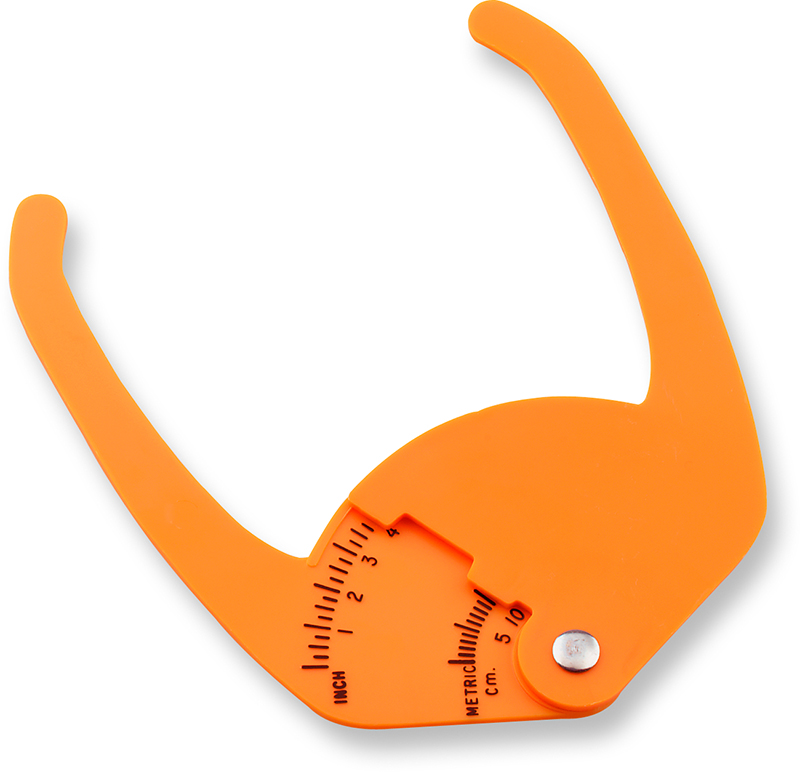

PLASTIC TREE CALIPER:

Use this durable caliper to measure the size of a tree up to 7" diameter! Fits easily into your pocket. The English scale reads from 0 to 7 inches with 1/4" graduations. The metric scale reads from 0 to 15 cm with 1 cm graduations.

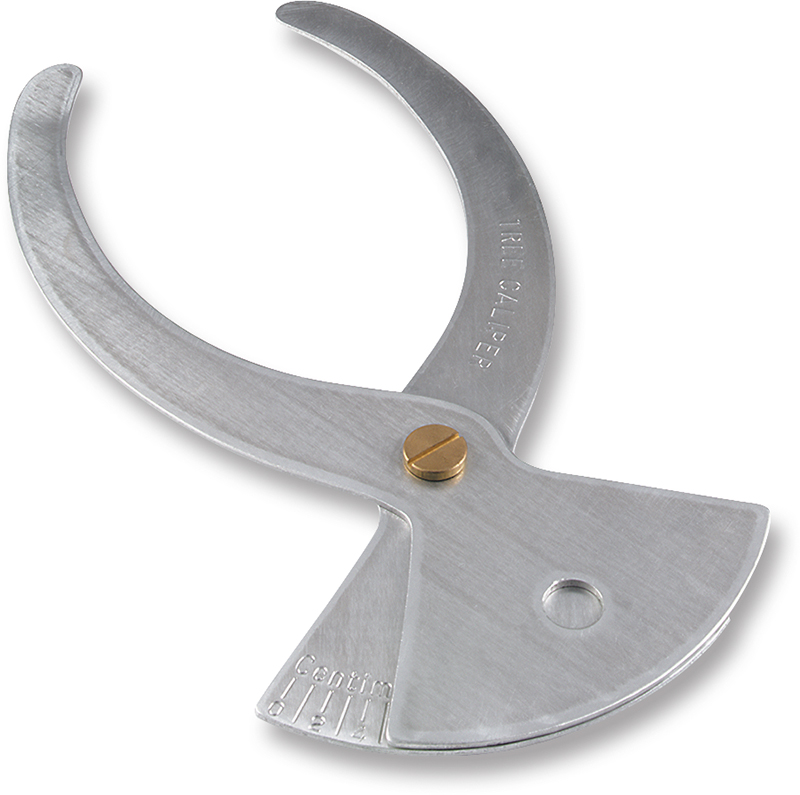

ALUMINUM TREE CALIPER:

Easy to use, this aluminum caliper is not affected by weather or climate. Measures diameters up to 8" in inches on one side (0 to 8" marked every 1/2") and centimeters on the other side (0 to 20 cm). 9-1/2" Long.

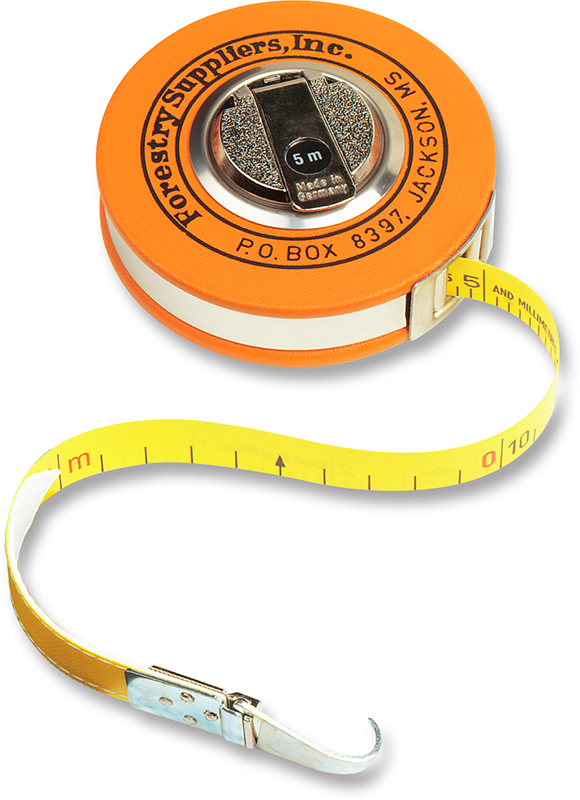

DIAMETER TAPE:

Two lengths avalable:
120 cm diameter/5m linear.
320 cm diameter/10m linear.

5/8quot; (1.6 cm) Wide tape line is synthetic fabric reinforced with thin phosphor brass wires. Claw hook, handcrank rewind.

Case dimensions: 3-7/8" (6.7 cm) x 1-1/8". (2.9 cm)

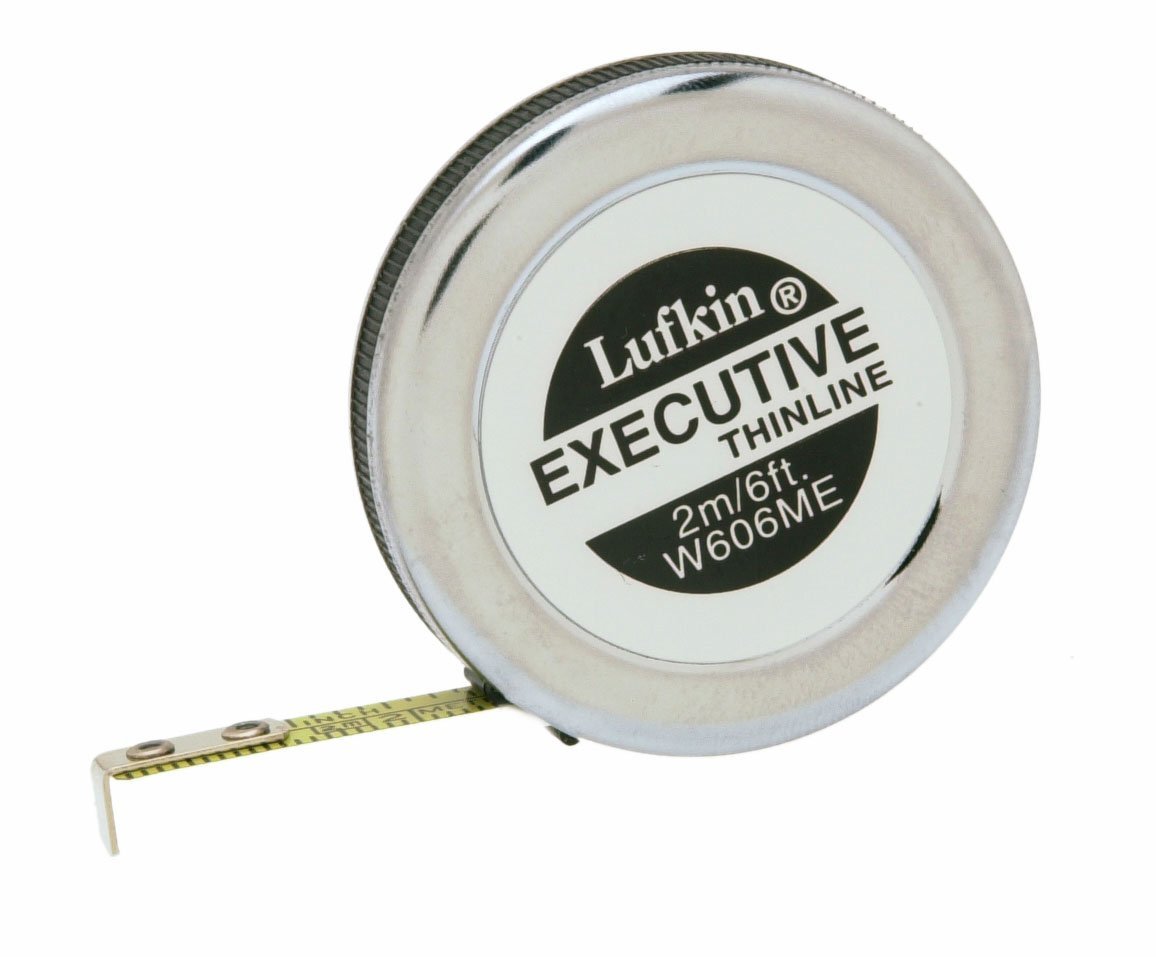

THINLINE STEEL TAPE, 2M / 6':

Lufkin® Executive Thinline Pocket Tape, 6'/2m, Model W606ME Convenient pocket-sized tape has a chrome case, steel yellow blade, and textured edges for easy handling. The top edge is graduated in 16ths and numbered consecutively in inches. The bottom edge is graduated in millimeters and numbered every 10th millimeter. 1/4" Wide x 6' (2m) Long Blade.

KESON® OPEN REEL FIBERGLASS TAPE:

1/2″ wide, top-quality, non-conducting fiberglass tapes won't shrink or deteriorate. Easy-to-read permanently bonded graduations. Folding end hook. The cross-arm open reel has a folding rewind handle and a "stake point." Graduated on one side: meter, cm and 2 mm divisions.

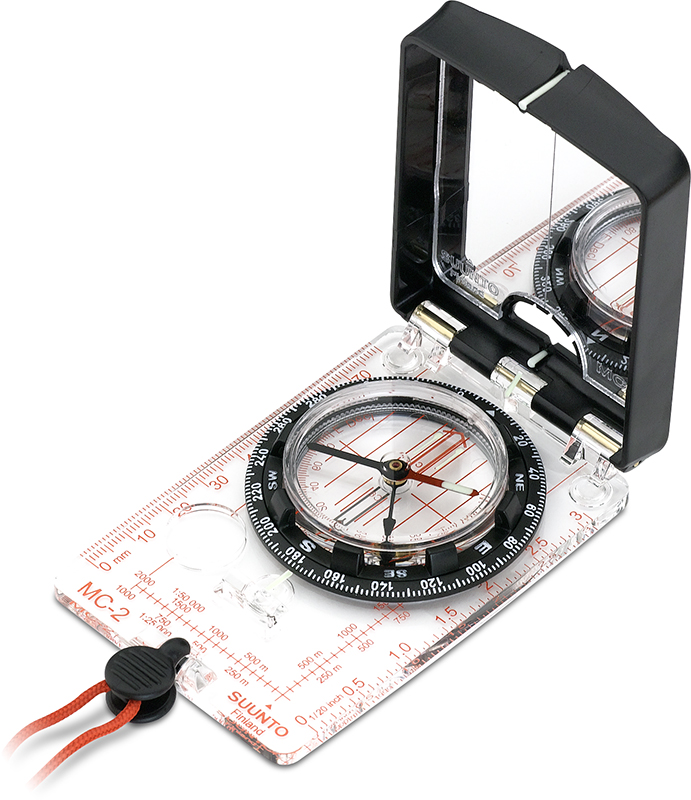

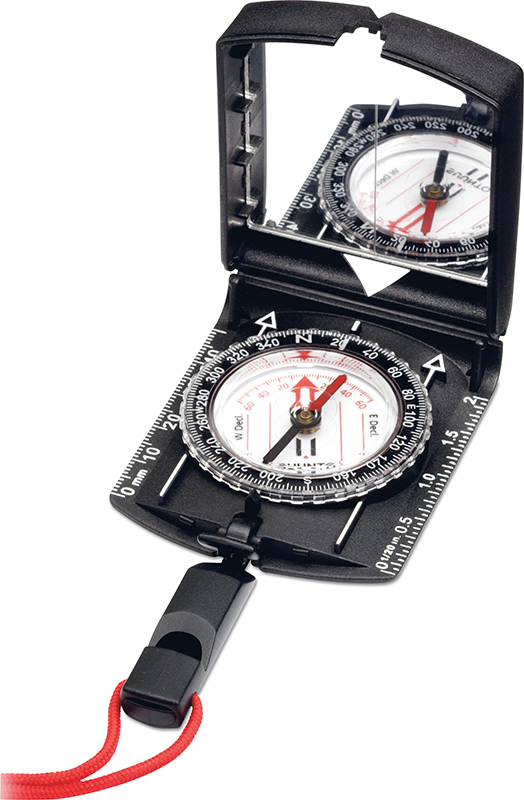

COMPASS w/ CLINOMETER SUUNTO® (MC-2D):

Liquid-damped magnetic steel needle and long-lasting precision pivot.
Built-in magnetic declination screw and magnifying lens.
Sighting mirror with luminous points. Additional sighting hole.
Clear protractor base is imprinted in red and features skid-proof rubber map feet.
Clinometer measures heights and slopes to ±90°.
Lanyard and declination tool included.
Baseplate.
Features a magnifier in the base, 1/20 inch scale, a mm scale, plus 1:25,000 and 1:50,000 map scales.
Dimensions: 2-1/2" x 3-13/16".

COMPASS, SUUNTO® MCB (AMPHIBIAN) COMPASS

Lightweight mirror-sighting compass is graduated 0 to 360° in 2° units and even floats! Fixed declination correction scale, polypropylene lid, sighting mirror, and rotating bezel. Detachable snap-lock lanyard with whistle. 2.5" x 5" x 0.6" .

COMPASS, SUUNTO® A-10 (PARTNER):

Graduated 0 to 360 degrees in 2 degree units. Features a liquid filled capsule, a declination correction scale, and scales in cm, inches, 1:24,000, and 1:62,5000. Rounded base-plate fits comfortably in your hand and has red print, a black bezel with white print, and a tapered map edge. 2.25″ x 3.5″. Lanyard Included.

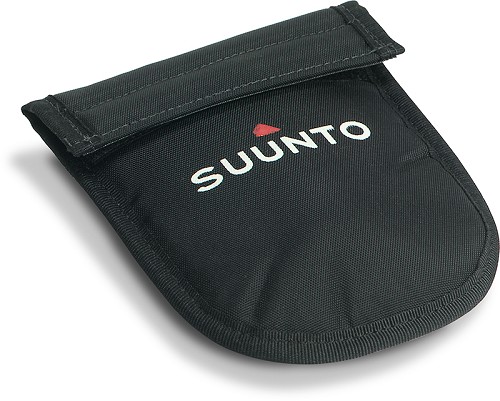

SUUNTO® CORDURA COMPASS CASE:

Features Velcro® closure and belt loop. Black Cordura nylon.
Dimensions: 5-1/2" x 3-3/4".

COMPASS, SUUNTO® KB-14:

High precision compasses that are very easy to use in the field -- simply sight your target using the through-compass lens and read the displayed bearing to the nearest 1/2 degree (estimate to 1/4 degree). The KB-14 has a brushed aluminum case and is supplied with a neck lanyard and Skylon (leather-like) case. Dimensions are 37″ x 2″ x 9/16″.

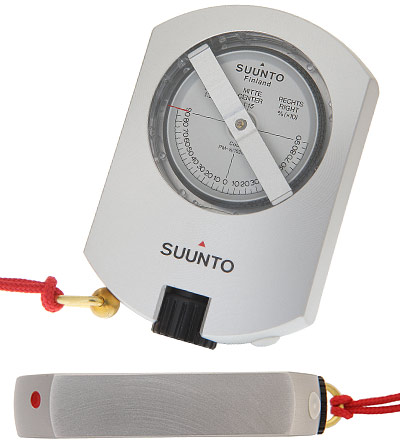

CLINOMETER - SUUNTO®:

Used to measure heights, slopes and vertical angles. Solid aluminum housing that resists rust and protects against impact. Jeweled bearing assembly supports the scale card assuring long-lasting accurate operation. Damping liquid surrounds scale card, assuring smooth, accurate and quick readings. Supplied with lanyard. Weight: 4.2 oz.

CLINOMETER COVER

Protective yellow rubber cover for your Suunto Clinometer or KB Compass.

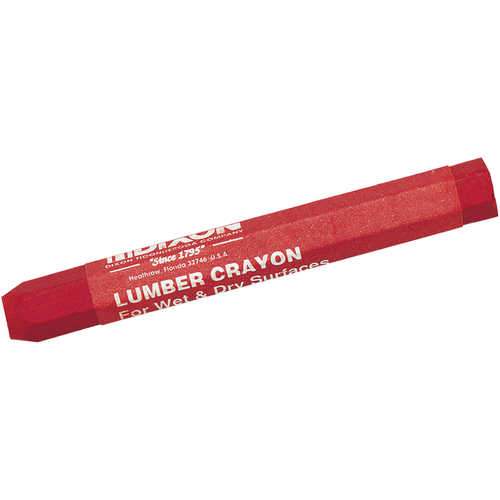

DIXON LUMBER CRAYONS

Waterproof, fadeproof, smearproof. Hexagon shape. Measure 4-1/2" x 1/2".
Sold in boxes of 12.
Available in red, black, yellow, green, blue, purple or pink

SPHERICAL DENSIOMETER

This tool is used to determine forest canopy coverage. It will measure forest over-story density from unobstructed sighting positions. It uses a spherical-shaped reflector mirror engraved with a cross-shaped grid of 24 quarter squares with delineates a plot overhead. Comes in a 3" x 3" x 1" wooden case. Comes complete with a leveling bubble for an accurate location. Comes in two models Concave or Convex. The readings from the Convex model represent a larger sample size than those from the Concave model.

NEW! NASTEK™ PLANT STRESS DETECTION GLASSES:

See plant and turf stress 2 to 10 days before it is visible to the naked eye! Utilizing technology developed by NASA scientists, the premium quality polycarbonate lens blocks out the green spectrum reflected from chlorophyll found in healthy vegetation by making it appear black or gray. Plants and turf impacted by drought, disease, or poor nutrition appear as glowing red, coral, or pink. The polycarbonate frame provides a comfortable wraparound fit, and the quick change snap-in lens system allows you to exchange the plant stress detection lens for the included flame copper sun protection lens (400 nanometer UV A-B-C). Soft case included.

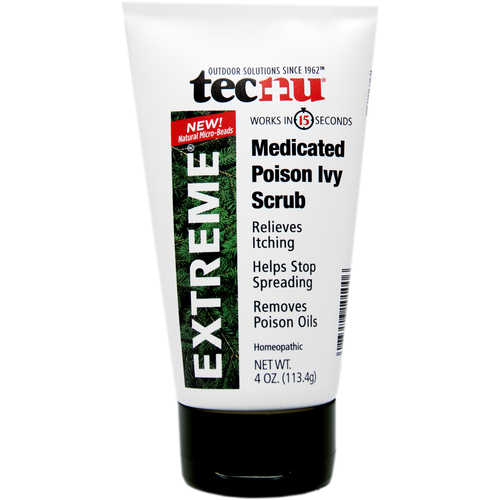

NEW! TECNU EXTREME® POISON IVY & OAK SCRUB:

Tecnu Extreme contains micro-fine scrubbing beads to effectively remove urushiol from the skin and active ingredient Grindelia to immediately relieve itching and speed the healing process. The thick, creamy gel can be used before the rash starts as well as after a rash appears to relieve symptoms and stop the rash from spreading. 4 oz. Tube.

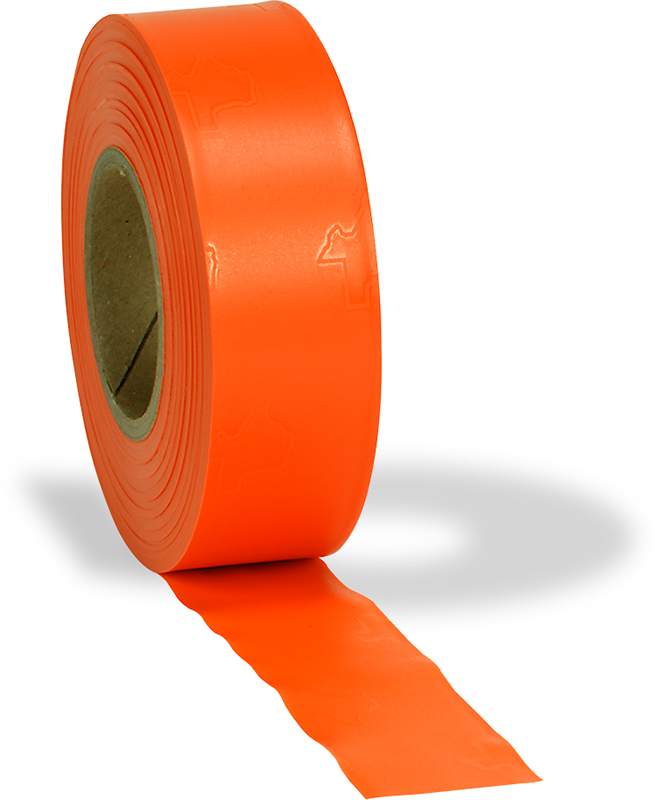

POLAR TAPE FLAGGING TAPE:

5 mil thickness, UV stabilized. 1″ core fits your thumb. Bright colors that are slow to fade. Available in Orange, Pink, Yellow, Blue, Green, Lime Green or Red.

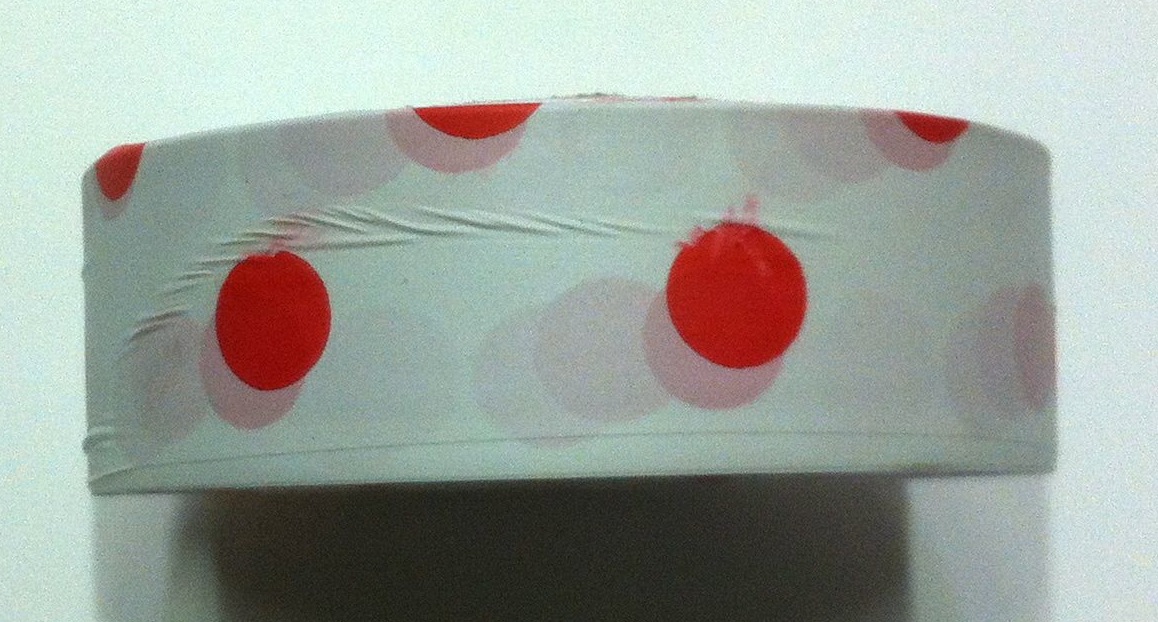

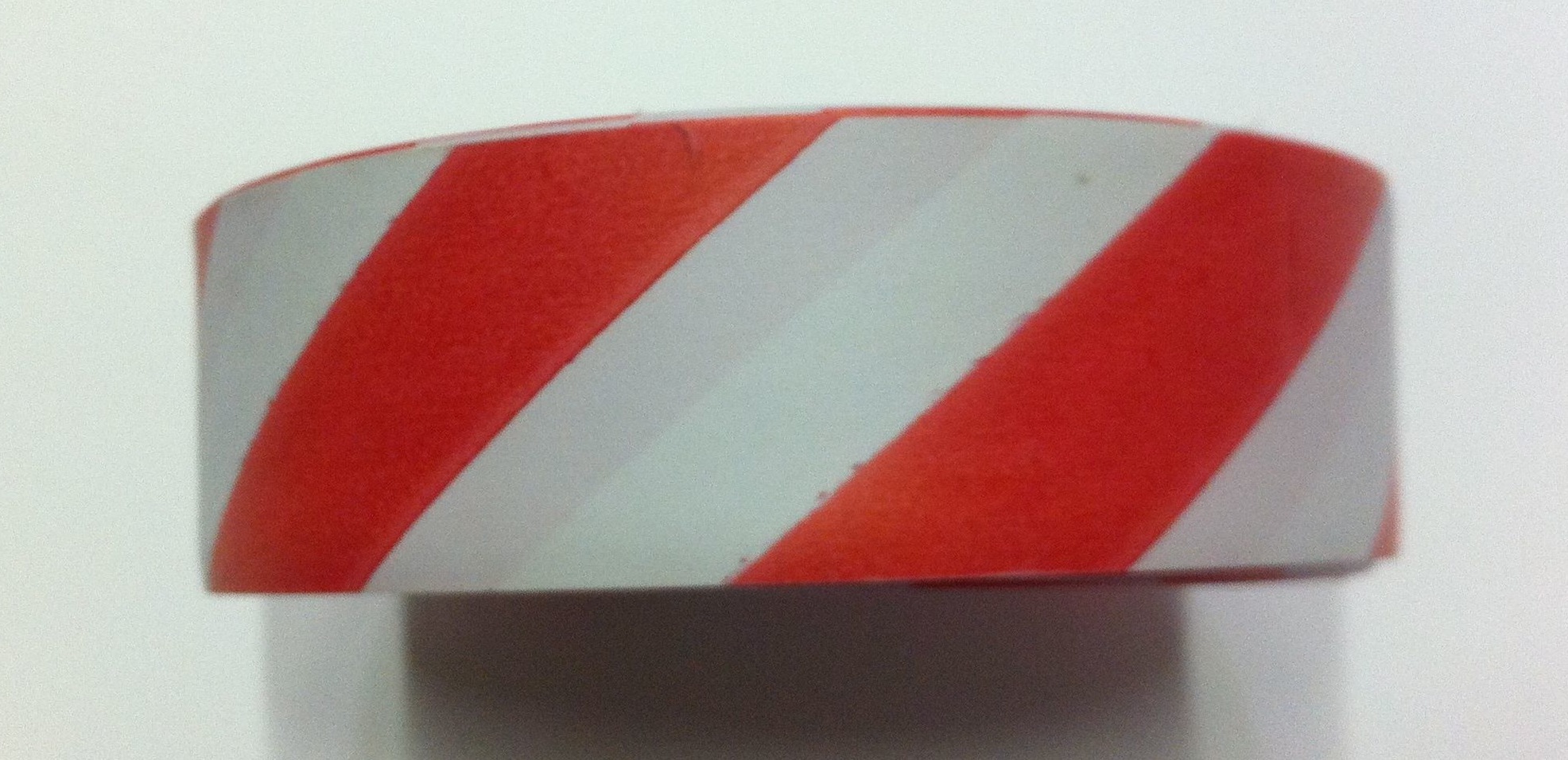

STRIPED or POLKA DOT FLAGGING TAPE:

1″ wide roll x 125′ long. Available in a wide selection of color combinations.

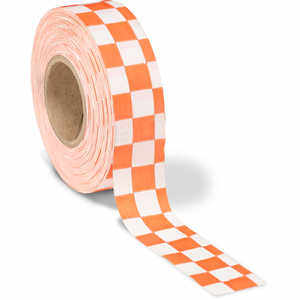

CHECKERED FLAGGING TAPE, 300 FOOT ROLL:

Brightly colored checkered flagging is easily seen at long distances. 2.0 mil Thick vinyl provides excellent colorfastness. 1-3/16"W x 300' L per roll. Resists cold-cracking to -20°F.

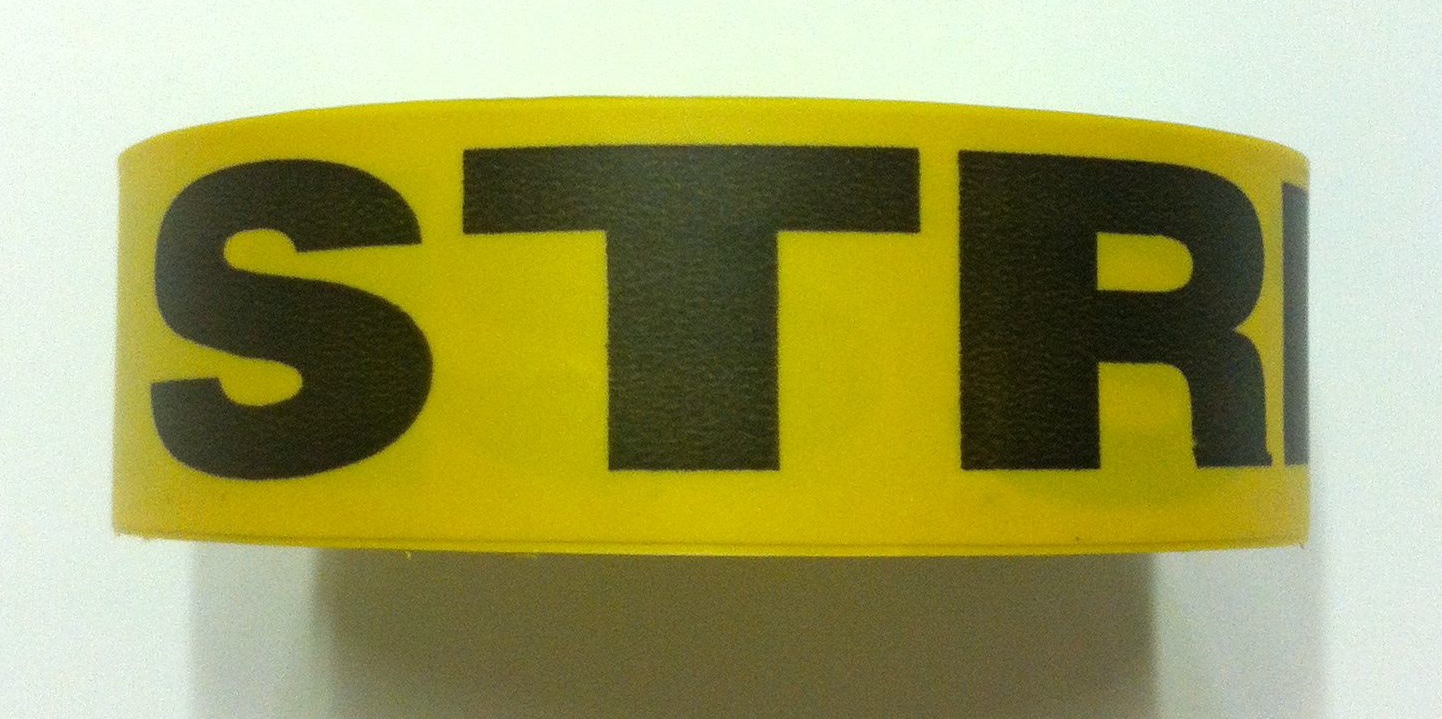

MARKED POLAR FLAGGING TAPE:

1″ wide roll x 125′ long. Pink Tape marked with black fish symbol, red tape with black "CREEK" or yelow tape with black "STREAM"

Printed warning tapes are also available. 1.5″ wide x 150′ in length.
$2.25 per roll for stock warnings. Please inquire with your warning specifications.

POLY FLAGGING TAPE:

Made of inexpensive plastic. Colors are not as bright as PVC tape. Color will last for at least 3 months. Excellent for short term, high volume marking. Available in Red, Orange, Blue, Yellow, Teal and Purple. 1″ x 500′ Rolls.

BIODEGRADABLE FLAGGING TAPE:

Available in Red, Blue, Yellow and Orange.

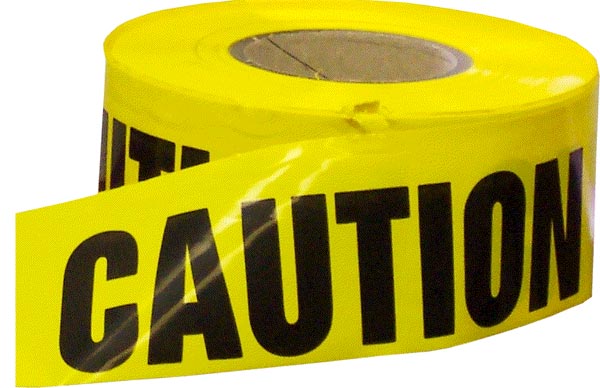

BARRICADE TAPE:

3″ x 1000′ x 2 mil. Meets OSHA 1910.144 for marking physical hazards. Increases visibility from hazards. Non-adhesive. Lightweight, economical reusable polyethylene. Can be tied, nailed or stapled in place.

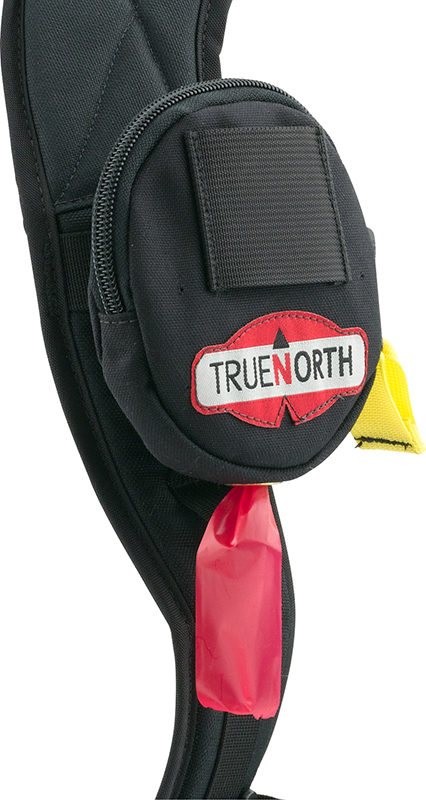

FLAGGING TAPE DISPENSER:

This tough, durable flagging dispenser attaches easily to your belt and holds one roll of flagging. Made of cordura nylon, it features a heavy-duty YKK zipper and a brass dispensing grommet.

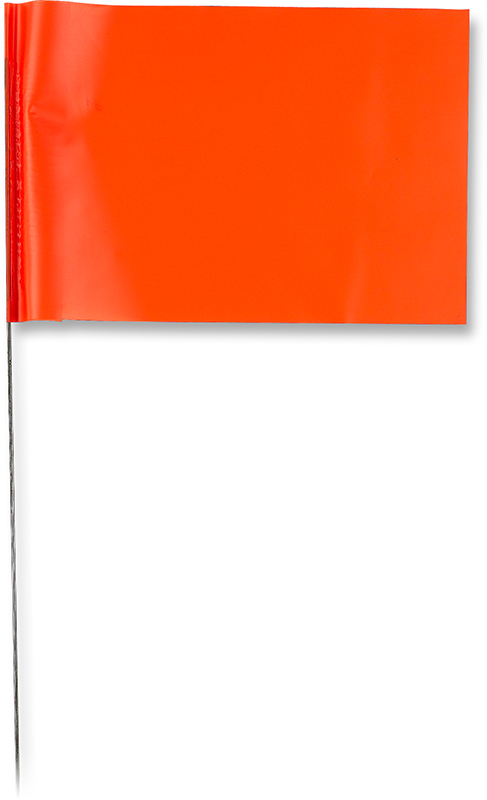

WIRE STAKE FLAGS MARKERS:

4″ x 5″ flag on 30" wire. Available in red, yellow, white, blue, flo-pink, flo-green, flo-orange. Sold in bundles of 100.

ALUMINUM TAGS, DOUBLE FACED, 1″ x 3″:

Aluminum wrapped cardboard, write or emboss on either side. 6" wire. Wire not inserted. Box of 50.

ALUMINUM TAGS, DOUBLE FACED, 3/4″ x 3″:

Write with pencil, pen or pointed instrument on front or back without show-through. Debossed mark remains visible, regardless of weather, grease, pitch or dirt. Aluminum sheet wrapped around tagboard. 3/4" x 3". Hole diameter 1/6". Comes with 9" wire (not inserted). Pkg of 1000.

ROUND PLASTIC TAGS (NUMBERED):

1.5″ round plastic tags. Pre-numbered. Availble in lots numbered 1 to 100, with hole in top. Available in red, green, orange, blue, white, yellow.

ALUMINUM TAGS, ROUND:

1-1/4" or 1-1/2" diameter tags made of 0.050" aluminum with 0.125" hole diameter.

ALUMINUM TAGS, NUMBERED, ROUND:

1-1/4" diameter tags made of 0.050" aluminum with 0.125" hole diameter.
Numbered in increments of 100 (ie. 1-100, 101-200, etc.) or 1000 (ie. 1-1000, 1001-2000, etc.)

ALUMINUM NAILS:

These won't spike or zinc poison trees when you attach aluminum tags.

TUNGSTEN CARBIDE SCRIBER:

Aluminum body with replaceable scriber tip.

BOOK - FOREST ECOSYSTEM SCIENCE AND MANAGEMENT

Third Edition. Edited by Raymond A. Young and Ronald L. Giese. John Wiley & Sons, Inc., 2003. Provides a broad overview of the field of forestry from a number of authors. Content coverage ranges from the basic cell, individual trees, and the forest stand to management of the forest stand and acquisition of goods and services from the forest. Each author provides general coverage of his or her specialized field within the discipline and emphasizes how decisions made by forest managers affect the forest ecosystem. Appendices. Hardcover. 560 Pages.

A FIELD GUIDE TO TREES OF THE PACIFIC NORTHWEST

This laminated (8 fold pamphlet) guide features twenty-six native trees commonly found from Alaska to Oregon, providing common and Latin names accompanied by colour photographs of identifying features such as bark, leaves or needles, flowers, cones, seeds and fruit. Information on identification, range and an illustration of each tree's silhouette make it a snap to distinguish a shore pine from a western white pine or a trembling aspen from a paper birch. Also included are traditional uses and other interesting tree facts and lore.
Dimensions (when folded) 9" x 4.5"

MUNSELL PLANT TISSUE COLOR CHARTS:

Accurately determine and record color from nutrient deficiency in plant tissues. Contains 320 matte color chips mounted on charts for 17 hues: 2.5R, 5R, 10R, 2.5YR, 5YR, 7.5YR, 2.5Y, 5Y, 2.5GY, 5GY, 7.5GY, 2.5G, 5G, 7.5G, 5BG, 2.5B, and 5RP. Instructions, binder, and masks included. 1977 Edition. Page Dimensions: 4-3/8" x 7-1/4". Binder Dimensions: 6" x 7-3/4" x 1".
